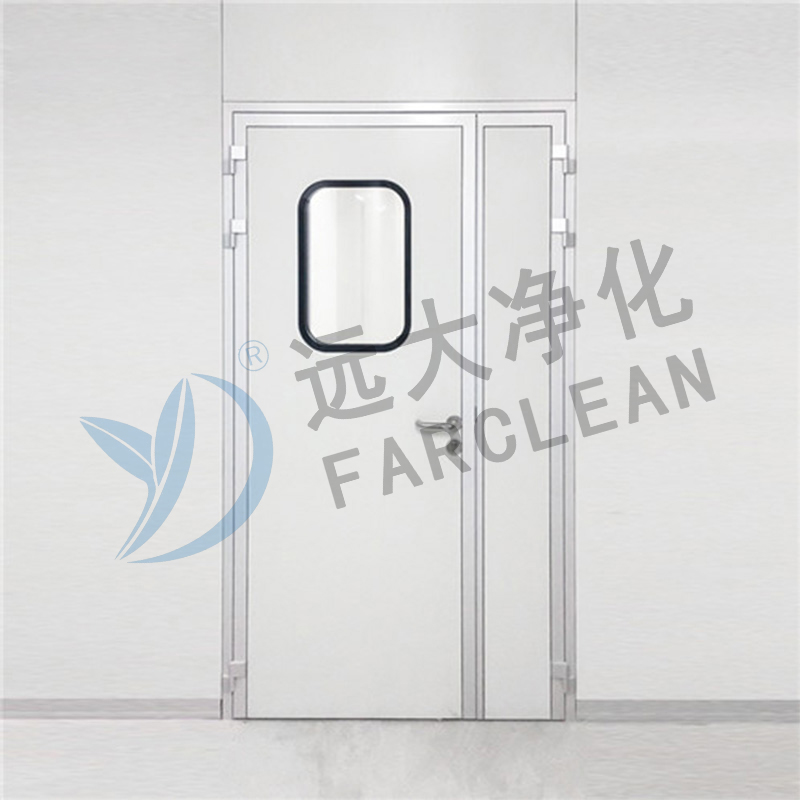

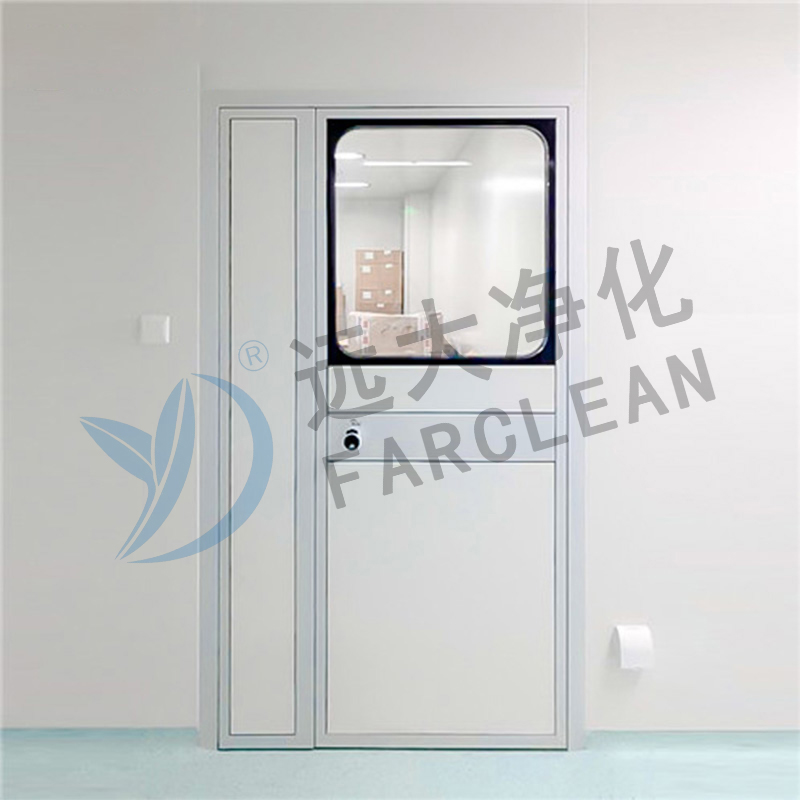

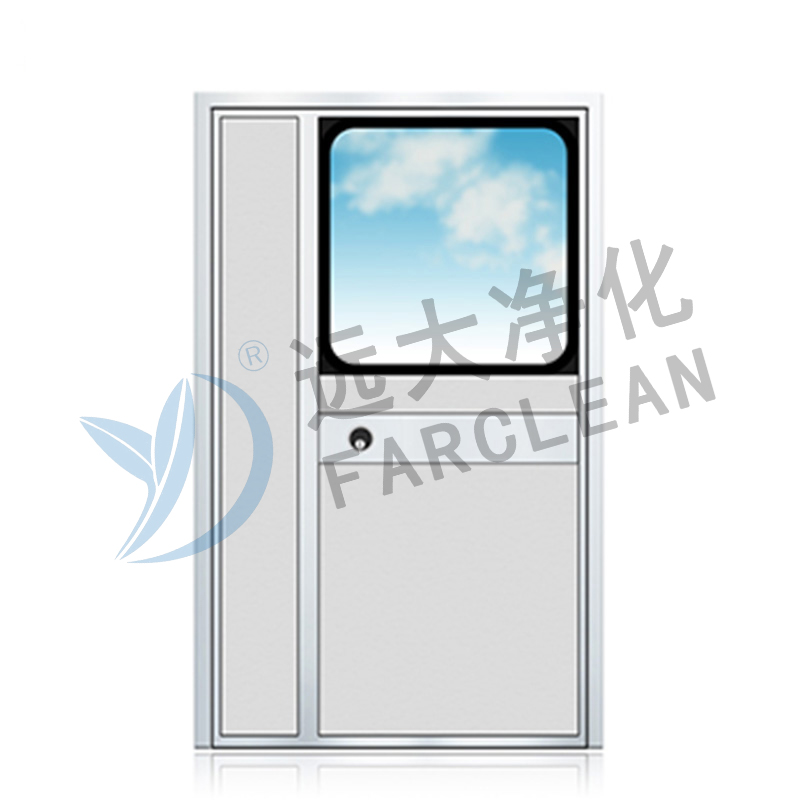

Aluminum Alloy Cleanroom Doors

The aluminum alloy clean door can be equipped with a glass window, and the door close device can be installed in the appropriate part, and the bottom is equipped with an automatic lifting seal. It comes with door closer, locks, windows, lifting thresholds and other high-quality hardware.
2. The door frame and door panel are made of high-strength aluminum alloy cutting and splicing angles; The door fan is made of colored steel plates or melamine resin plates that are hole-free, dust-free and easy to clean;
3. The window features a double-layered, hollow design, with edges that have been carefully turned for a seamless finish. An integrated desiccant within the window's internal frame ensures that fogging is eliminated, providing a clear and unobstructed view. The 5mm thick tempered glass is framed by a 20mm black border, which not only enhances the aesthetic appeal but also ensures that the glass surface is flush with the door panel, resulting in a visually appealing and transparent appearance.
5. The lock body is made of stainless steel handle lock, and the fixing screws outside the lock can not be exposed.
6. Provide the third-party fire detection report of the door, and the fire resistance time is greater than or equal to 1h.
7. The door panel comes with a self-bubbling polyurethane seal automatically applied by the gluing machine to ensure that it does not fall off and ensure the door seal. The adjustable aluminum alloy silicone seal is provided at the bottom of the door panel.
8. Meet the relevant standards and requirements of the clean industry.

serial number	name	Specification	Remark
1	Door frame/door panel edging	Aluminum alloy	Surface treatment, optional silver oxidation, sand electro-white, plastic spraying
2	door panel	Melamine resin plate/color steel plate	Yuanda standard configuration
3	Locks	Stainless steel handle lock	Yuanda standard configuration, three-year warranty
4	window glass	5mm thick tempered	Lined with 304 stainless steel liner, specification 386*586 R101
5	door closer	Non-positioning (nickel plated)	Yuanda standard configuration optional positioning/non-positioning
6	Hinge (Hinge)	304 stainless steel	Yuanda Standard with one door leaf and three hinges
7	Lifting sweeping strip	Aluminum alloy silicone leather strip	Good elasticity and permanent
8	sealing strip	Silica gel	Anti-aging for 10 years
9	paper honeycomb	Melamine resin board: 41.5mm thick Color steel plate: 48.5mm thick	Flame retardancy: optional aluminum honeycomb, rock wool
10	glass glue	Silica gel	Yuanda standard configuration
11	High-temperature resistant glue	Polyether, polyisocyanate	Can withstand high temperatures up to 300 degrees
12	Mounting screws	Self-tapping screws	Installed
13	Color (galvanized sheet)	Polyester resin plastic powder	Color selection: outdoor pink, no discoloration for 10 years outdoors, antistatic, VHP, antibacterial
