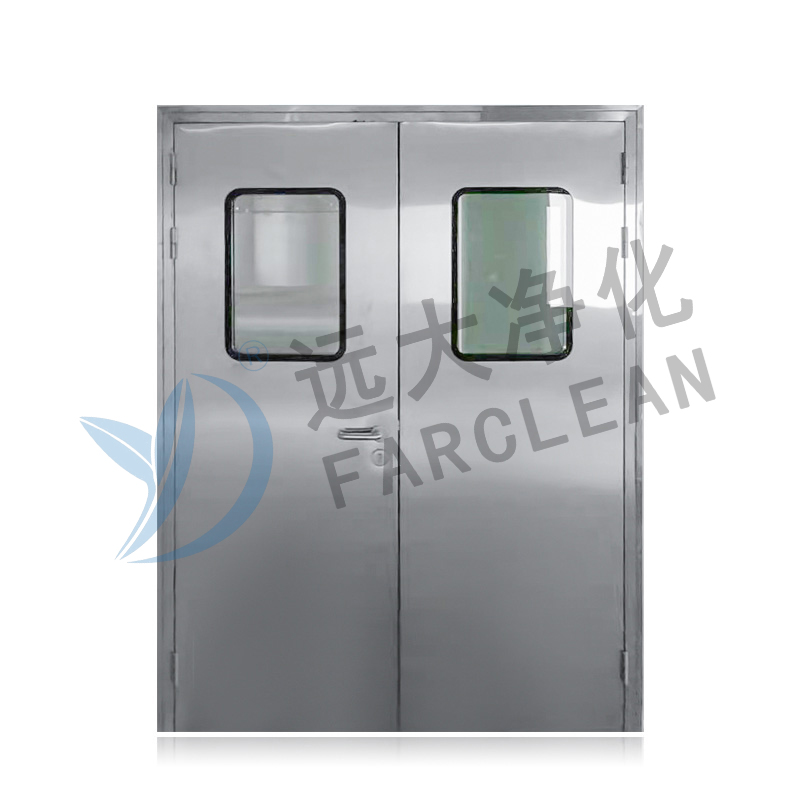

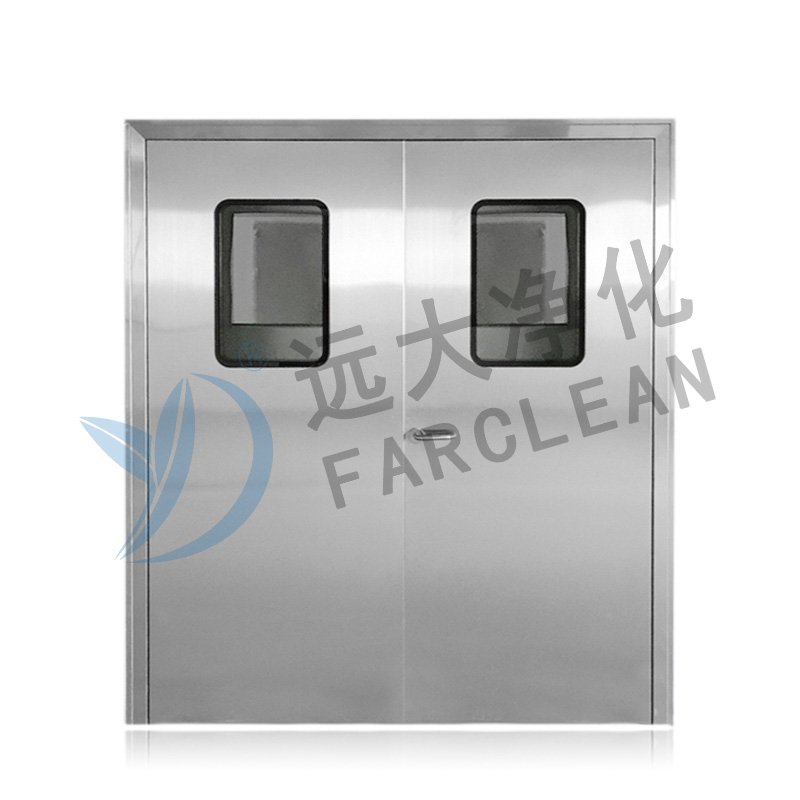

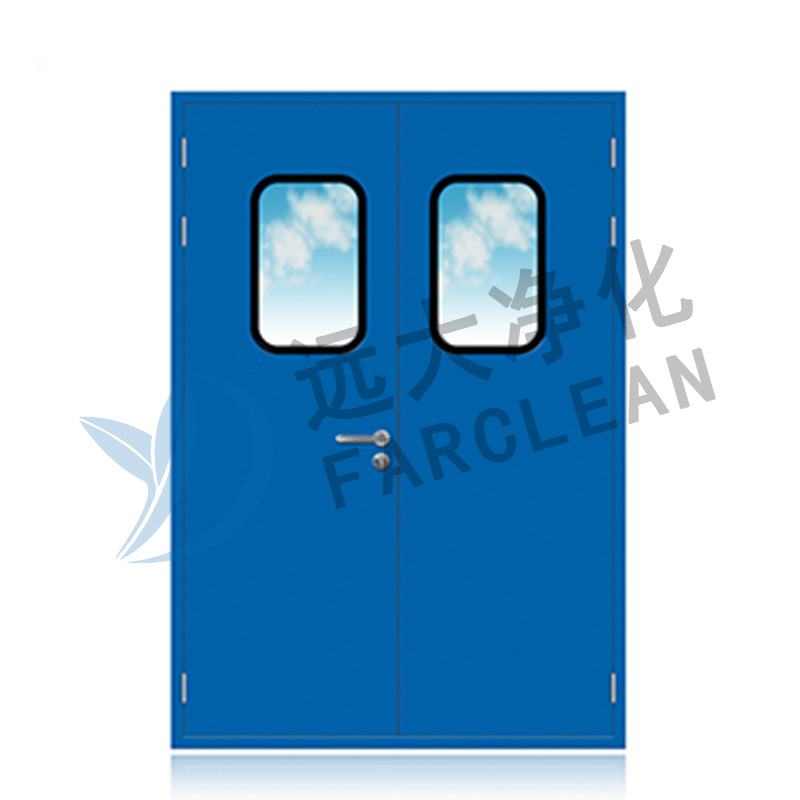

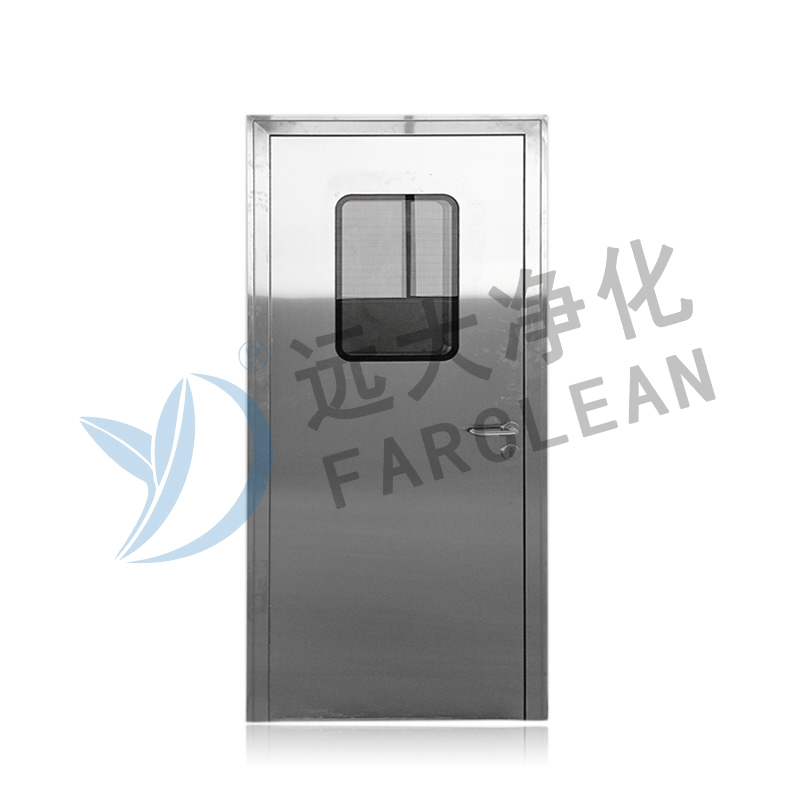

Stainless Steel Cleanroom Doors

The stainless steel clean door can be equipped with a glass window, and the door close device can be installed in the appropriate part, and the bottom has an automatic lifting seal strip. It comes with door closer, locks, windows, lifting thresholds and other high-quality hardware.
2. Door frame door panel with high-quality stainless steel plate;
3.The window features a double-layered, hollow design, with edges that have been carefully turned for a seamless finish. An integrated desiccant within the window's internal frame ensures that fogging is eliminated, providing a clear and unobstructed view. The 5mm thick tempered glass is framed by a 20mm black border, which not only enhances the aesthetic appeal but also ensures that the glass surface is flush with the door panel, resulting in a visually appealing and transparent appearance.
4. The lock body adopts stainless steel handle lock, and the fixing screws outside the lock can not be exposed.
5. Provide the third-party fire detection report of the door, and the fire resistance time is greater than or equal to 1h. 6. The door panel comes with a self-bubbling polyurethane seal automatically applied by the gluing machine to ensure that it does not fall off and ensure the door seal. The adjustable aluminum alloy silicone seal is provided at the bottom of the door panel.
7. Good corrosion and wear resistance.
8. Meet the relevant standards and requirements of the clean industry.

serial number	Part name	Specification	Remark
1	door frame	304 stainless steel 1.2 thick	Surface treatment, oil removal, roughening, and plastic spraying. Optional thickness: 1.2 1.5
2	door panel	304 stainless steel 1.0 thick	Surface treatment, degreasing, roughening, and then plastic spraying
3	Locks	stainless steel lock	Yuanda standard configuration, three-year warranty
4	window glass	5mm thick tempered	Lined 304 stainless steel liner specification 386*586 R101R
5	door closer	GMT	Yuanda standard configuration, optional positioning, and non-positioning
6	Hinge (Hinge)	304 stainless steel	Yuanda Standard with one door leaf and three hinges
7	Lifting sweeping strip	Aluminum alloy silicone leather strip	Good elasticity and permanent
8	Door panel sealing strip	Polyurethane two-component	Anti-aging for 20 years
9	paper honeycomb	48mm thick	Flame retardancy: optional aluminum honeycomb, rock wool
10	glass glue	Silica gel	Yuanda standard configuration
11	High-temperature resistant glue	Polyether, polyisocyanate	Can withstand high temperatures up to 300 degrees
12	Mounting screws	External hexagonal self-drilling screws	Easy to install
13	decorative cover	plastic	Smooth and beautiful
14	color	Polyester resin plastic powder	Color of your choice: outdoor pink , no discoloration for 10 years outdoors, VHP, antibacterial
