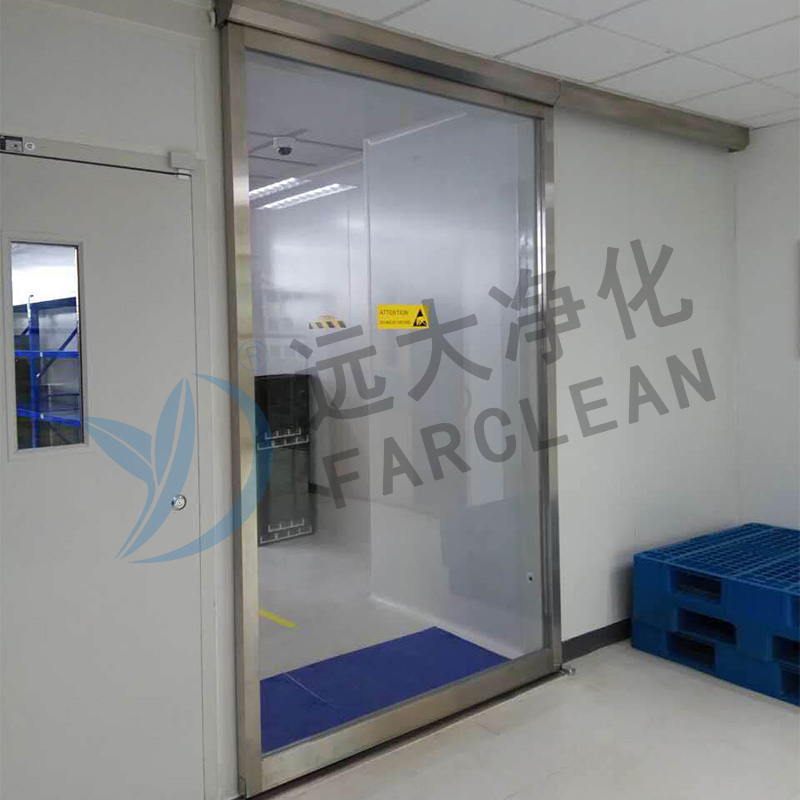

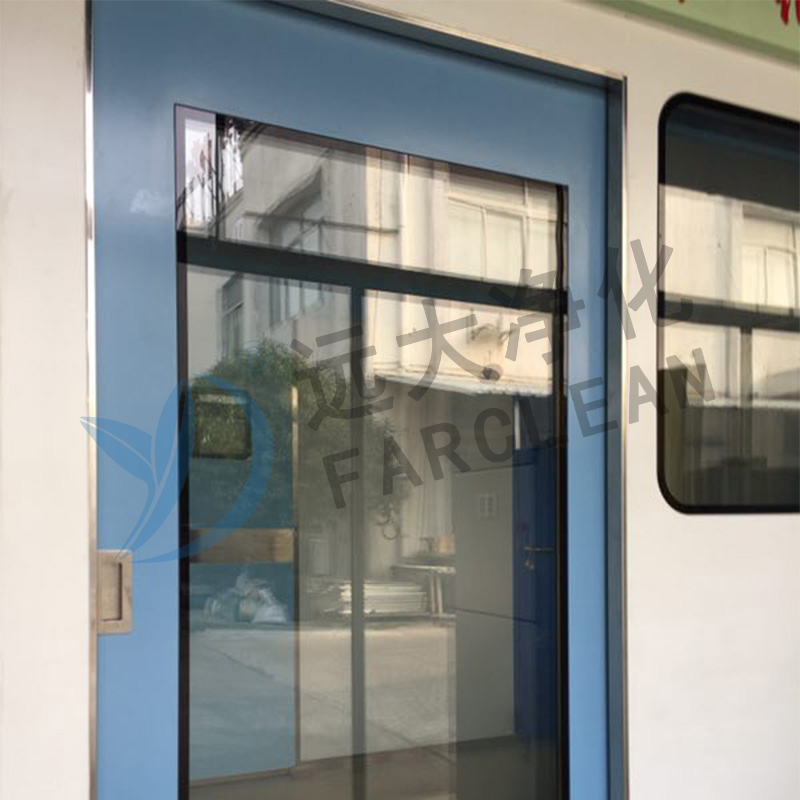

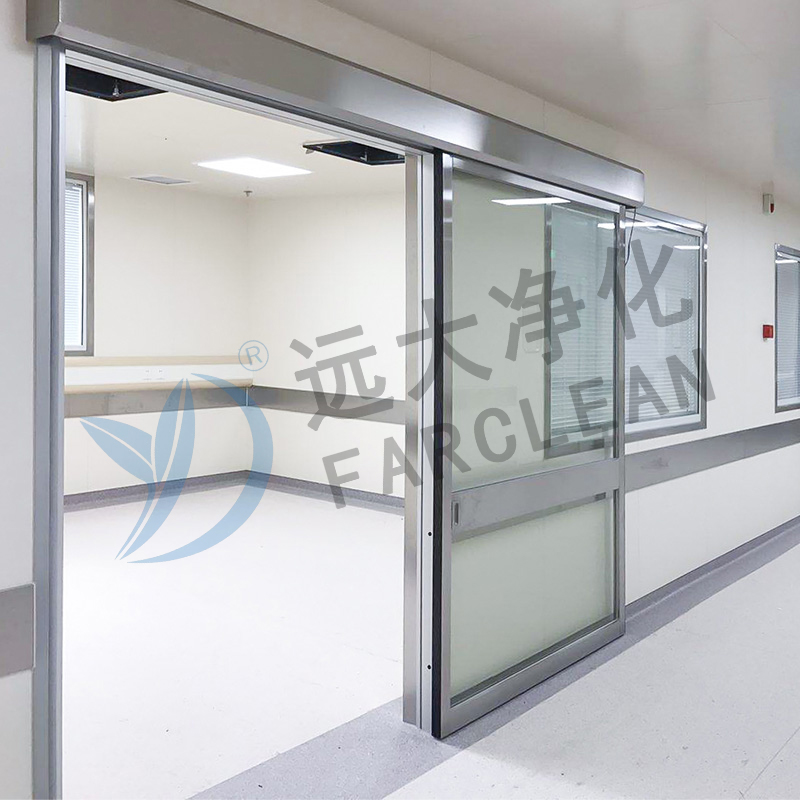

Glass Automatic Sliding Door

Electric sliding door
1. The application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals and other industries with purification workshop needs (hospital operating room, ICU, electronics factory is widely used); Features: Smooth surface, easy to clean, easy to open.

2. Product specifications

3. Install the node diagram
1. Close the hole before installing the moving door as shown below
2. After the hole is closed, install a guide rail (80mm above the hole) to fix the guide rail. Figure below



4. Technical parameters
1. Door panel: color steel plate/galvanized plate/stainless steel
2. Window: conventional round window 500*300, 760*300, 930*300, 386*586, square window 400*600, embedded 304 stainless steel liner (white, black) and placed inside the desiccant to prevent fog. (When the color steel plate is used to make the door, the window size can only be 386*586 and 400*600, because if the hole is carved directly on the color steel skin, the four sides of the glass will rust easily for a long time, if the customer insisted on the non-standard window size, you need to set the groove aluminum around the window hole and then put the window.)

3. Door panel wrapping: stainless steel/galvanized plate/aluminum alloy
4. Door edge: aluminum profile (50 thick wall) + sealing strip/stainless steel + sealing strip/galvanized plate + sealing strip
5. Bottom seal strip and double sliding door anti-collision seal strip
6. Dark handle: stainless steel dark handle (optional without)
7. Guide cover: guide aluminum alloy cover galvanized sheet/stainless steel.
8. Lifting wheel, swing stopper, stopper, belt, tail wheel drive wheel table.
9. Motor + controller: domestic/imported.
10. Bring safe light
11. Opening method: can be specified according to the customer, generally there are buttons, hand touch, infrared induction, radar induction (microwave sensing), foot sense, swipe card, fingerprint face recognition and other opening methods.
12. The sliding door is generally divided into single opening and double opening, because our sealing strip is on the edge of the door, so the single moving door has no left and right points, if the customer requires the sealing strip on the door panel, there are left and right points.
