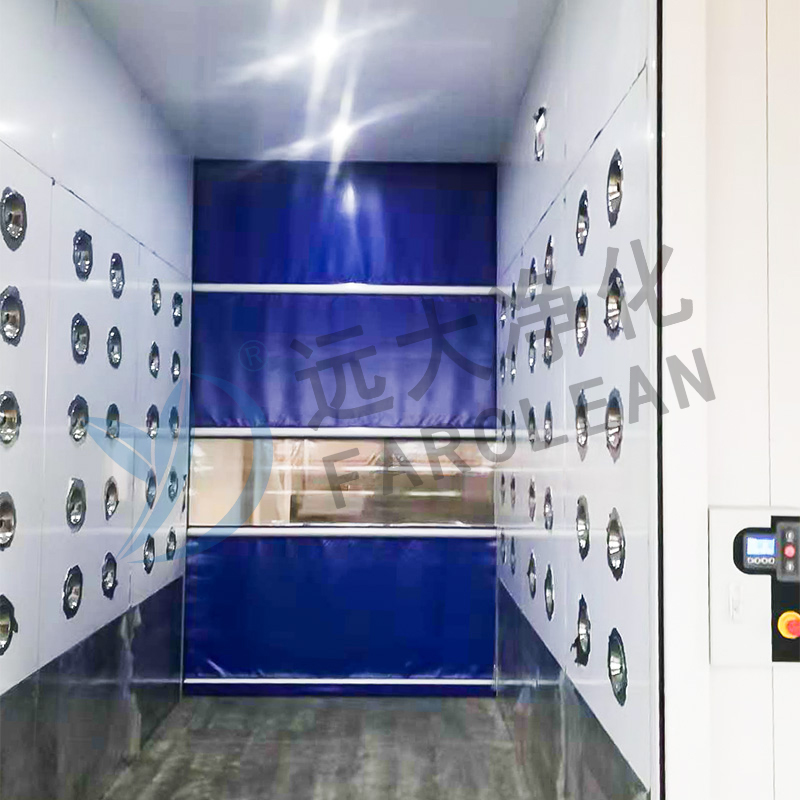

PVC High-Speed Roller Shutter Air Shower

1. The application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries that have the needs of purification workshops; Features: Smooth surface, easy to clean, color optional.

2. Product specifications

3. Installation node diagram:
Make a hole in the side wall, use aluminum profile/galvanized sheet/stainless steel, close the edge, and put the air shower/cargo shower into the hole, as shown below:

4. Technical parameters
4.1 Material: The exterior is coated, while the interior is made of stainless steel, or the entire unit can be made of stainless steel.
4.2 Doors: Steel doors/stainless steel doors/sliding doors/rapid-roll doors.
4.3 Air Velocity: Exceeds 25mm/s.
4.4 Initial Effect and High Efficiency: Brand quality (alternative brands are also acceptable).
4.5 Lighting: LED lights, with the brand to be specified.
4.6 Stainless Steel Nozzles: Vary according to product specifications.
4.7 Control System: Microcomputer control system with touch screen operation, human body induction, and electronic interlocking.
4.8 Power Supply: 380V, 50HZ.
4.9 Door Swing Direction: As illustrated in the figure below, options include A (left in, right out), B (right in, left out), C (right in, right out), and D (left in, left out)
