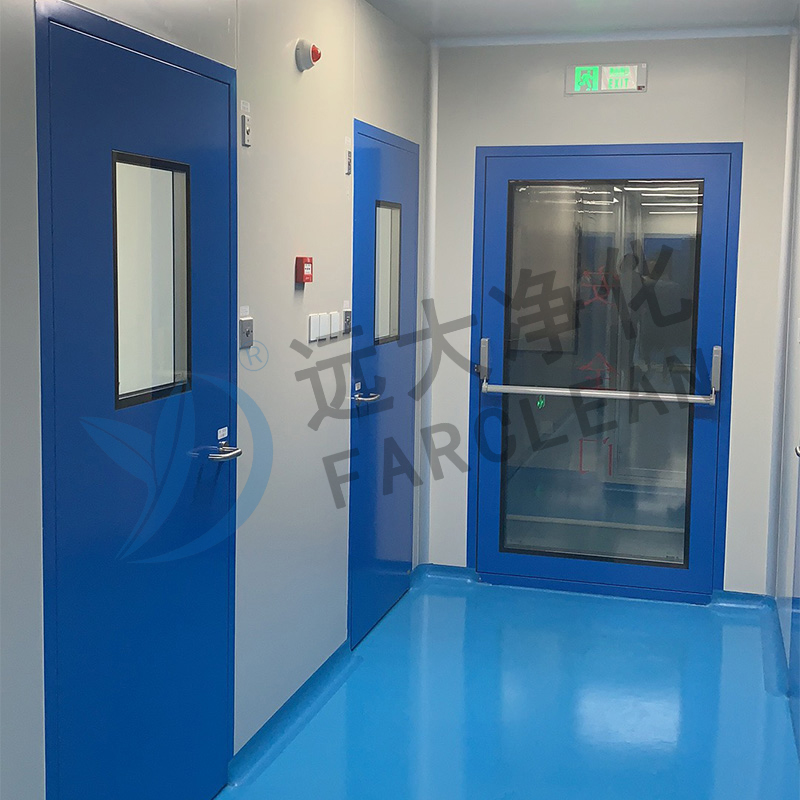

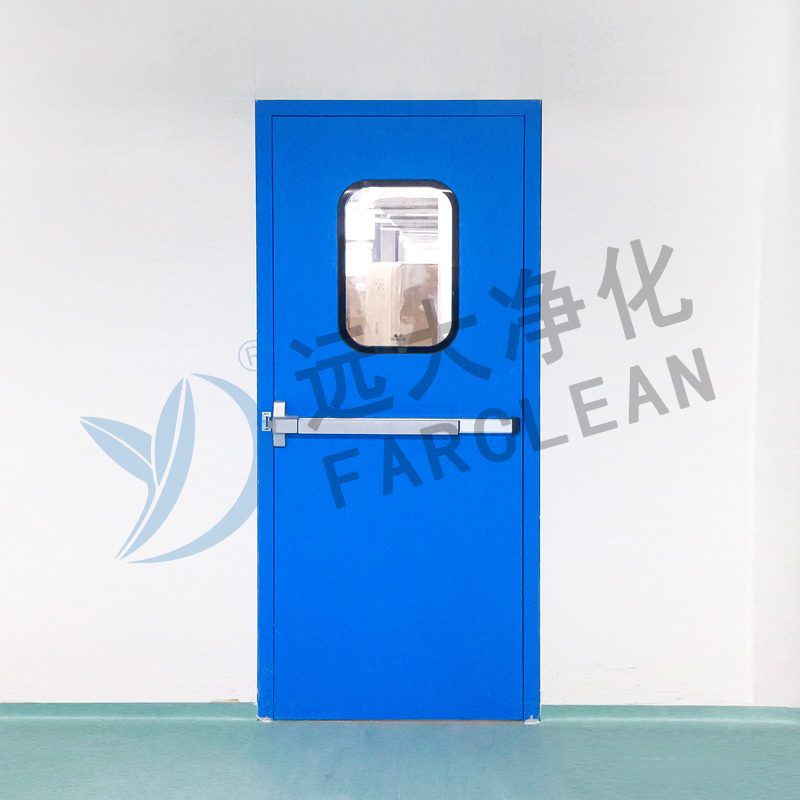

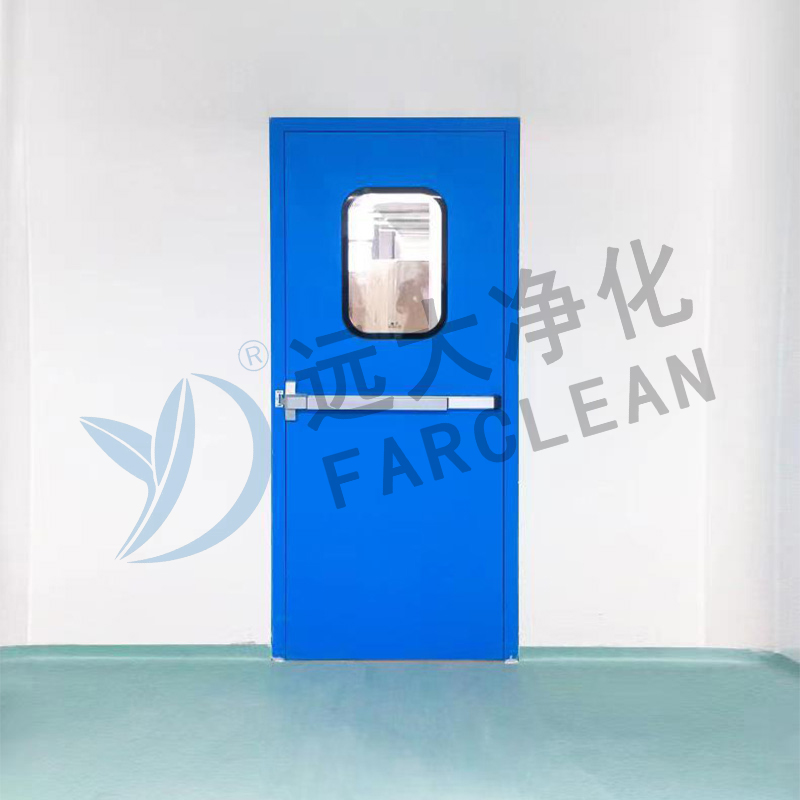

Steel Emergency Exit Doors

Overall dimensions: 1500×2100
Net valid size: 1400×2050
Door panel: 1.0mm zinc-free galvanized plate
Door frame: 1.0mm zinc-free galvanized sheet
Inquiry

PREV：Large Glass Emergency Exit Doors
NEXT：No next article
Suzhou Yuanda Purification 0086-18115488801 Suzhou Yuanda Purification [email protected]
Product Parameters
Overall dimensions: 1500×2100
Net valid size: 1400×2050
Door panel: 1.0mm zinc-free galvanized plate
Door frame: 1.0mm zinc-free galvanized sheet
Filling: 48mm thick flame retardant paper honeycomb
Window: 386×586, 5mm thick, hollow double layer, 20mm black edge arc tempered glass, embedded stainless steel inner liner, broad 3c, R=101 hinge: 304 stainless steel flag
Hinges (3 per door panel)
Door lock: escape lock
Connection mode: flush type
Double door with latch only, no lower latch
Color: To be determined
Door frame: 1.0mm/1.4mm/1.5mm thick galvanized sheet/stainless steel
Door plate: 1.0mm thick galvanized sheet/stainless steel
Locks: GMT push-rod lock/Ifre push-rod lock/other
Hinge (hinge): 304 stainless steel hinge/spring hinge/other
Latch: 304 stainless steel latch double doors such as lower latch, the ground needs to open holes and the bottom of the door plate 50mm can not be sealed
Filler: Paper honeycomb/Aluminum honeycomb/Rockwool/other
Sweeper: With/Without
Interlocking: With/Without (divided into visible or hidden)
Access Control: With/Without (divided into visible or hidden)
Threshold: Available with or without a threshold.
Vision Panel: The window is designed to be flush with the door panel. The standard sizes :circular window R101 (386*586*5mm) / square window (400*600*5mm)/ custom (custom sizes can be specified, with the note that specified sizes do not have flanges on the four sides).  The glass is surrounded by a 40mm black or white printed band with "3C/Yuanda" markings. The vision panel features a flange process, with inlays of 304 stainless steel or white and black finishes. Three distinct manufacturing techniques are employed to ensure the vision panel remains fog-free internally.


Suzhou Yuanda Purification is famous Steel Emergency Exit Doors Manufacturer and supplier in China, we have a high-level R&D team with over 20 years of experience in clean door and window design and development.
