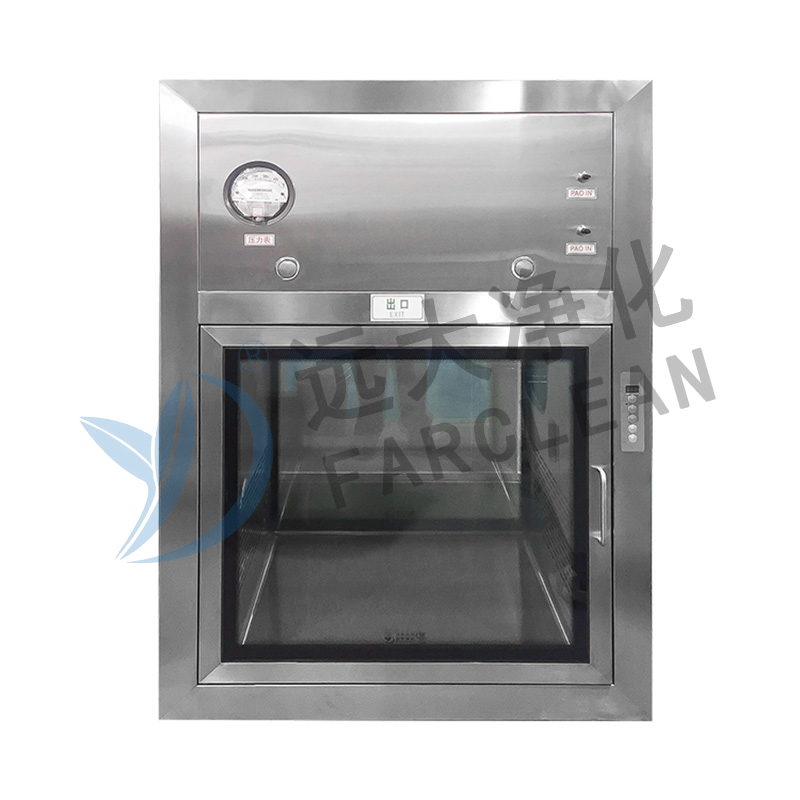

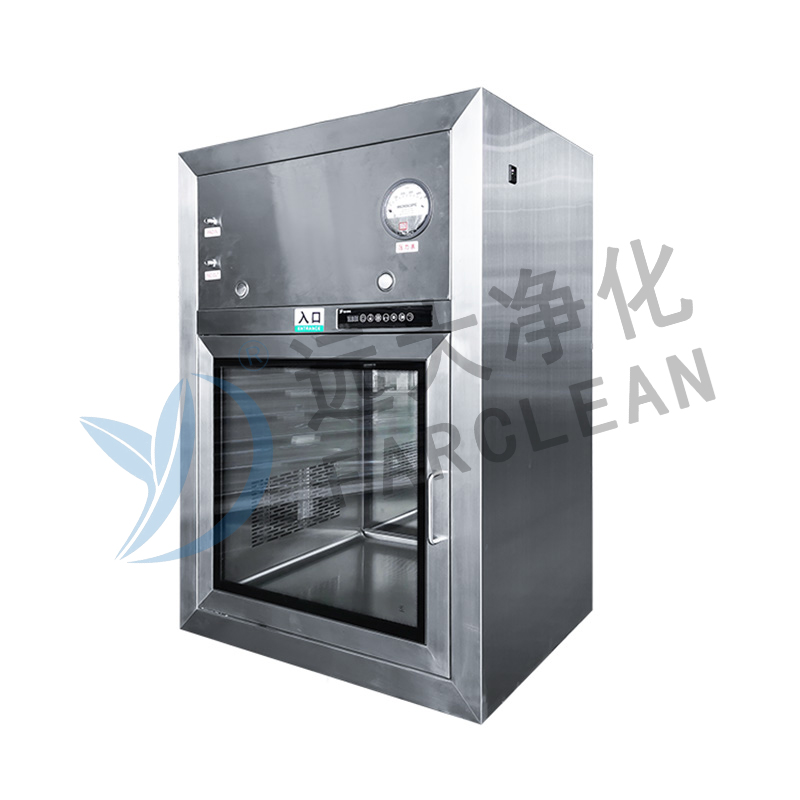

Self-Cleaning Pass through box

The application industry of the product: mainly used in the clean room and non-clean room material transfer room of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries with purification workshop needs; Features:Effective sterilization and clean cushioning


Product Parameters

1. The application industry of the product: mainly used in the clean room and non-clean room material transfer room of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries with purification workshop needs; Features:Effective sterilization and clean cushioning
2. Product specifications
3. Installation node diagram:

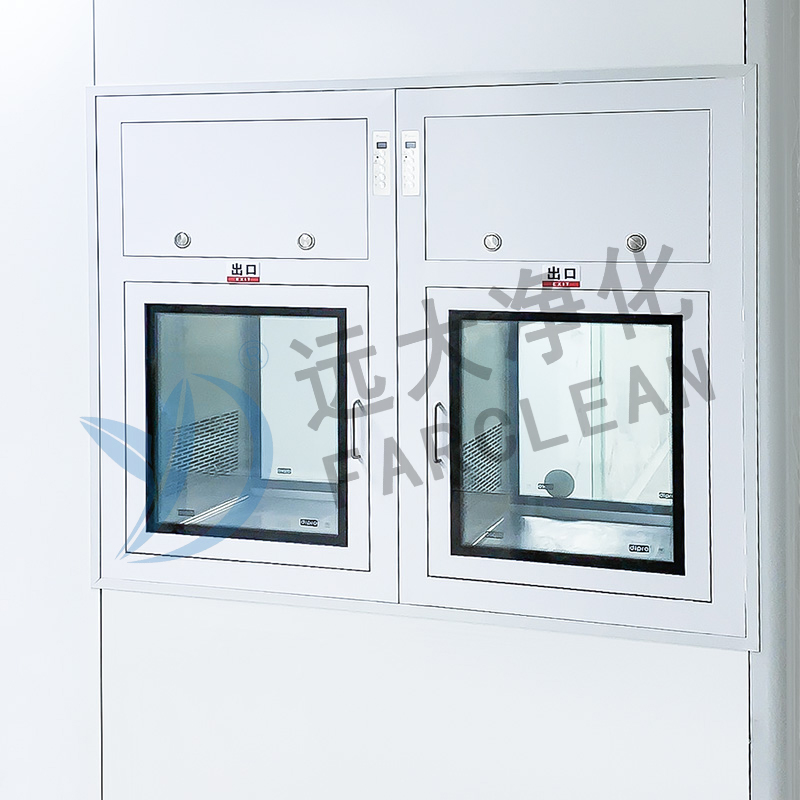

Make a hole in the side wall, use aluminum profile/galvanized sheet/stainless steel, close the edge, and put the self-cleaning transfer window into the hole, as shown below:

4. Technical parameters
1. Material: 1.2mm thick brushed stainless steel
2. Controller: Yuanda brand electronic interlock (magnetic lock) key control
3. Germicidal lamp/lighting is optional
4. Power supply: AC220V,50HZ,300W
5. Glass: 5mm thick tempered glass, hollow double layer.
6. PAO test port: Stainless steel air hose
7. Initial effect, high efficiency: brand Jiajie, (customers can also specify)
8. Fan: brand style (customers can also specify)
9. Wind speed: 0.36-0.54m/s
10. Noise: ≤65dB(A) (1m away from the equipment)
9. Differential pressure meter: High performance (customer can specify) 0-500pa
10. Direction of Operation: The product is designed with two operational directions as illustrated in the diagram below:A. Left Inlet, Right Outlet; B. Right Inlet, Left Outlet
